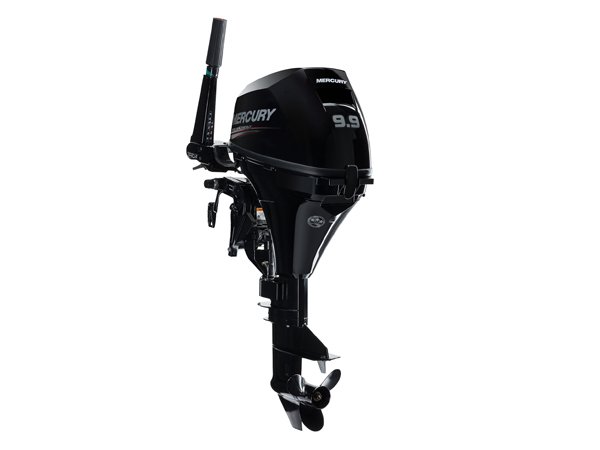

2019 Mercury 9.9EXLH-CT 9.9HP Command Thrust Outboard Motor

Mercury 9.9HP Command Thrust Outboard Motor

The 2019 Mercury 9.9EXLH-CT 9.9HP Outboard Motor is engineered to deliver exceptional power, efficiency, and control for larger or heavier boats. Designed with Mercury’s innovative Command Thrust gearcase, this outboard produces greater thrust and improved handling compared to standard outboards in the same horsepower class.

Weighing just 106 lbs, this portable outboard features a 25-inch extra-long shaft and electric start, making it ideal for applications where additional propeller depth and improved propulsion are required.

The Command Thrust system includes a larger gearcase, oversized anti-ventilation plate, and a high-thrust 4-blade aluminum propeller, delivering significantly more push and control in rough or turbulent water conditions. The taller gearcase positions the propeller deeper below the water surface, ensuring more efficient propulsion and reduced cavitation.

This makes the Mercury 9.9HP Command Thrust an excellent choice for pontoon boats, sailboats, workboats, larger jon boats, and displacement hulls that require additional torque and thrust.

The engine also features Mercury’s multi-function tiller handle, which allows easy one-handed control of steering, throttle, throttle tension, gear shifting, and engine stopping. Mercury’s auto-ratchet manual tilt system allows fast trim adjustments across five positions, enabling better performance in different water conditions.

Constructed with high-grade marine alloy, stainless steel components, and corrosion-resistant coatings, this outboard is built for durability in both freshwater and saltwater environments.

Backed by the trusted engineering of Mercury Marine and a 3-Year Factory Warranty, the 2019 Mercury 9.9EXLH-CT offers reliable marine performance, exceptional thrust, and long-term durability.

Key Features

• Command Thrust high-thrust gearcase (2.42:1 gear ratio)

• Extra-long 25″ shaft for deeper propeller placement

• Powerful 4-blade high-thrust aluminum propeller

• Designed for heavier boats and displacement hulls

• Electric start with 12V 76W 6A alternator

• Backup thru-cowl manual start system

• Multi-function tiller handle with integrated controls

• Forward-Neutral-Reverse shifting in tiller handle

• Adjustable steering tension control

• Twist-grip throttle with tension adjustment

• Thermostat-controlled water cooling system

• Auto-ratchet trim system with 5 tilt positions

• Shallow water drive capability

• Quiet through-propeller hub exhaust system

• High-grade marine alloy construction

• Stainless steel water pump housing

• Zinc-coated internal water passages

• Sacrificial zinc anodes and trim tab

• Start-in-gear protection system

• Low oil pressure warning indicator

• ESG over-rev protection system

• Safety lanyard emergency stop switch

Motor Specifications

Model: 9.9EXLH-CT
Model Year: 2019
SKU: 9.9EXLH-CT-19

Manufacturer: Mercury Marine
Country of Manufacture: Japan

Horsepower: 9.9 HP
Engine Type: 4-Stroke
Cylinders: 2

Shaft Length: 25″ Extra Long
Steering: Tiller
Starting System: Electric Start
Trim & Tilt: Manual

Fuel Delivery: Carburetor
Fuel Tank: External

Displacement:
208 cc (12.8 cubic inches)

Bore × Stroke:
55 × 44 mm (2.16 × 1.73 inches)

Full Throttle RPM Range:
5000 – 6000 RPM

Ignition System:
Digital CDI with electronic spark advance

Fuel Type:
87 Octane (up to 10% ethanol)

Fuel Tank Capacity:
3.2 gallons

Cooling System:
Water-cooled with thermostat control

Gear Ratio:
2.42:1 Command Thrust gearcase

Gear Shift:
Forward – Neutral – Reverse

Propeller:
Command Thrust 4-Blade High-Thrust Aluminum Propeller

Weight:
106 lbs

Oil Type:
SAE 10W-30 Mercury 4-Stroke Outboard Oil

Oil Capacity:
27 fl oz (800 ml)

Alternator Output:
12V 76W 6A

Saltwater Rated:
Yes

What’s Included in the Box

• 3.2 Gallon Fuel Tank

• Quick-Connect Fuel Line

• 4-Blade Aluminum Command Thrust Propeller

• Mercury 4-Stroke Engine Oil

• Owner’s Manual

• Tool Kit

• Mercury Marine 3-Year Factory Warranty
